Zhihui Eagle S200 tilting vertical take-off and landing fixed-wing UAV

零售价

0.00

元

市场价

0.00

元

产品编号

数量

库存:

Categories

Back to list



Describe

Params

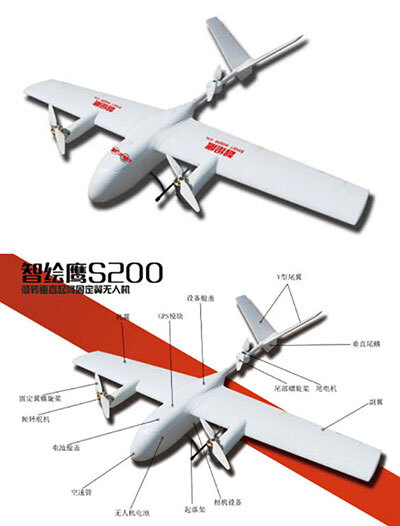

Zhihui Eagle S200 tilting vertical take-off and landing fixed-wing UAV

Product features

Wisdom draw eagle S200 uav using rotated vertical take-off and landing fully autonomous landing fixed wing layout form,can realize the fixed wing and uav rotorcraft more freedom to switch,both fixed-wing uav navigation time,high speed and distance of the characteristics and the characteristics of uav rotorcraft vertical take-off and landing,in the mountains,hills and jungles complex terrain and built-up area and efficient operation,greatly expand the application range fixed-wing unmanned aerial vehicle(uav),is the ideal choice of the industrial-grade unmanned aerial vehicle(uav).

High efficiency:The Smart Eagle S200's vertical take-off and landing design greatly reduces outfield siting time and reduces the risk of aircraft damage.The whole machine fast disassembly tilting design,greatly reduces the installation time.The installation will be complete and take off in 5 minutes.The operation area with Sony-RX1R2 can reach 10-15 square kilometers.

Simple:The Smart Eagle S200 is fully removable,the camera module is universal and can be quickly replaced,the whole machine does not need redundant connectors,plug in and fly.The aircraft is a three-rotor tilting structure.After the plane turns flat,the rear OARS stop.There is no extra drag,and there is no need to install the multi-shaft aircraft arm.With customized UAV-Mapper ground station,each parameter is simple and clear,and function invocation is convenient.

Safety:The Smart Eagle S200 weighs only 4.7KG and has a wingspan of 1.95M when carrying the RXLR2 camera.Significantly reduced kinetic energy.In addition,the Smart Eagle S200 supports a variety of fault protection,low voltage return and other emergency security actions.

Multi-function:The Smart Eagle S200 supports the load of common forward cameras such as RX1R2 and A7R2,five-lens and two-lens tilting camera,multi-spectral camera,monitoring pod and HD image transmission.One machine multi-purpose,load only need to change the cabin,no need for extra debugging.

Technical parameters

wingspan	1950mm
The length of the	1350mm
Maximum take-off weight	7.5KG
Maximum effective load	1.2KG
Maximum flight altitude	4000m
Effective range of digital station	＞10km
Effective control radius	＞10km
Cruising speed	约65km/h
Battery life	About 75 minutes
range	约70km
Take-off and landing approach	Fully automatic vertical take-off and landing
The largest wind	Level 5
Loadable equipment	Monocular camera,tilt camera,multispectral camera, Monitoring pod,hd drawing transmission equipment,etc
Operating area	8-15km2/flights
Work precision	Can output 1:15001:10001:2000 Image,equipped with PPK difference module, The accuracy of cm can be reached after the later calculation

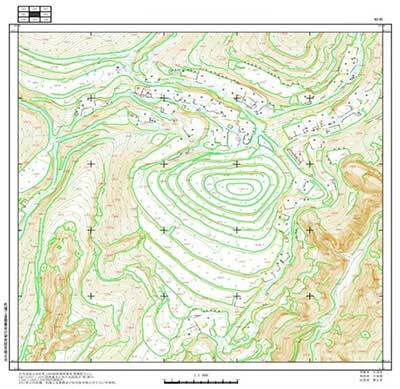

Topographic map

Orthogonal projection as
